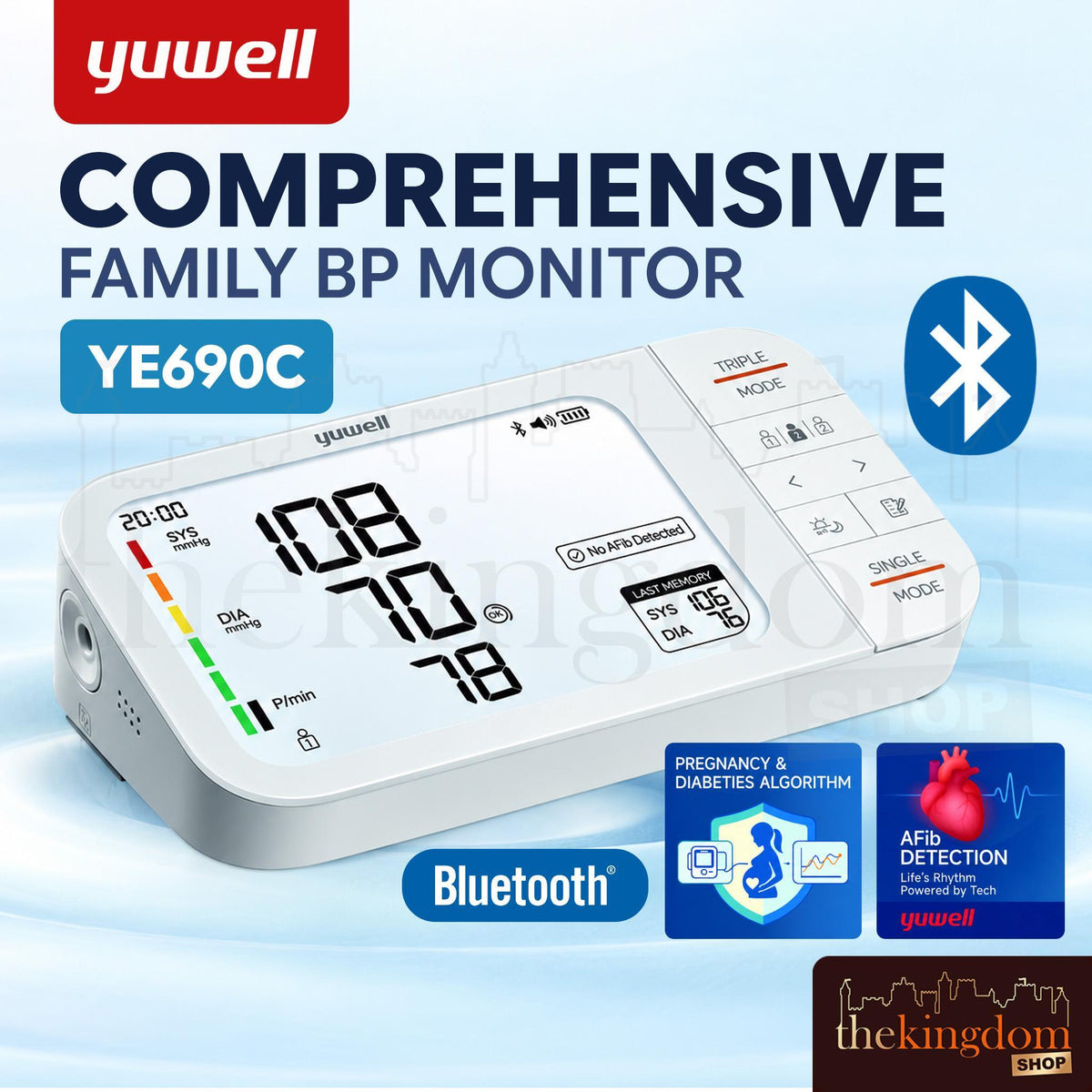

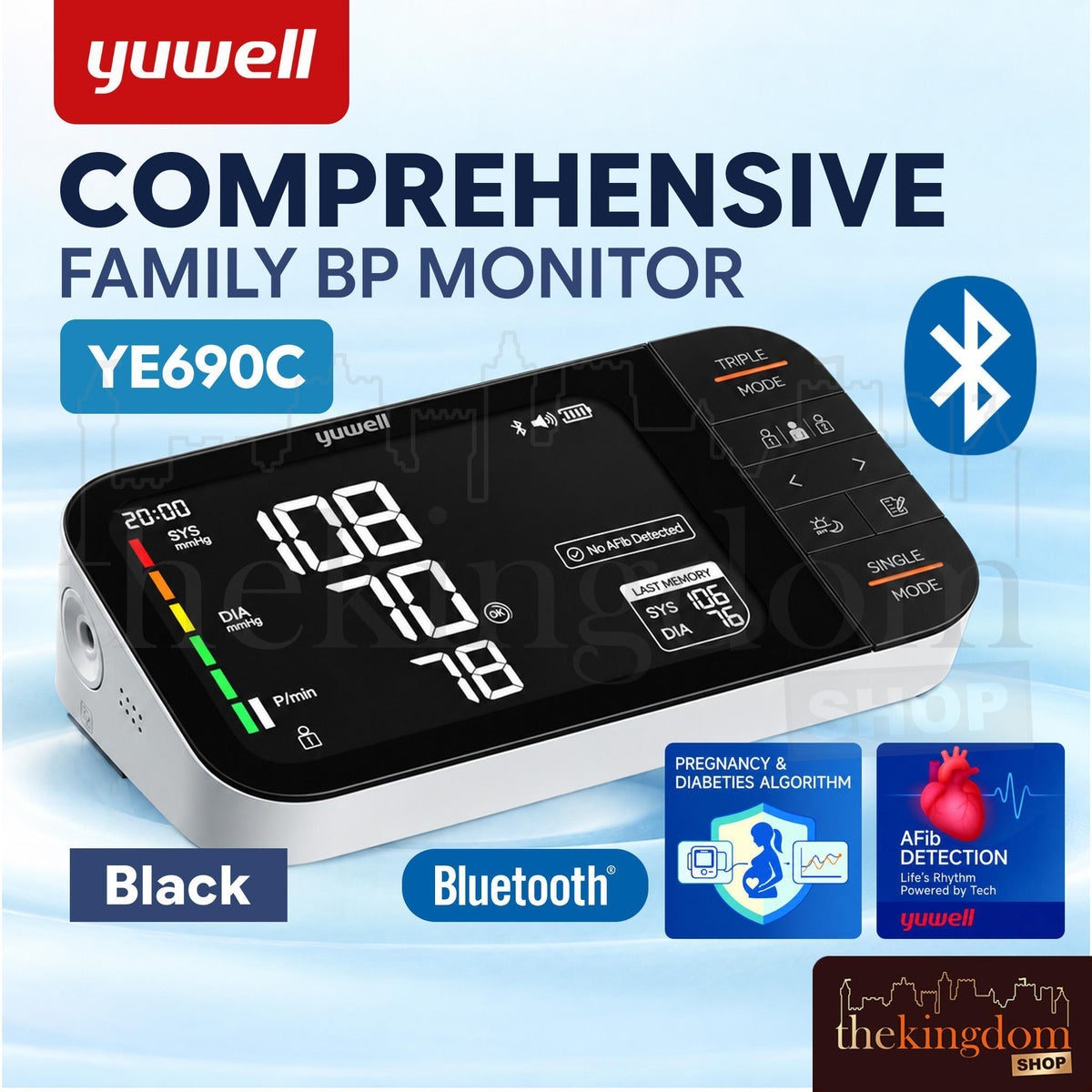

Yuwell YE690C Blood Pressure Monitor

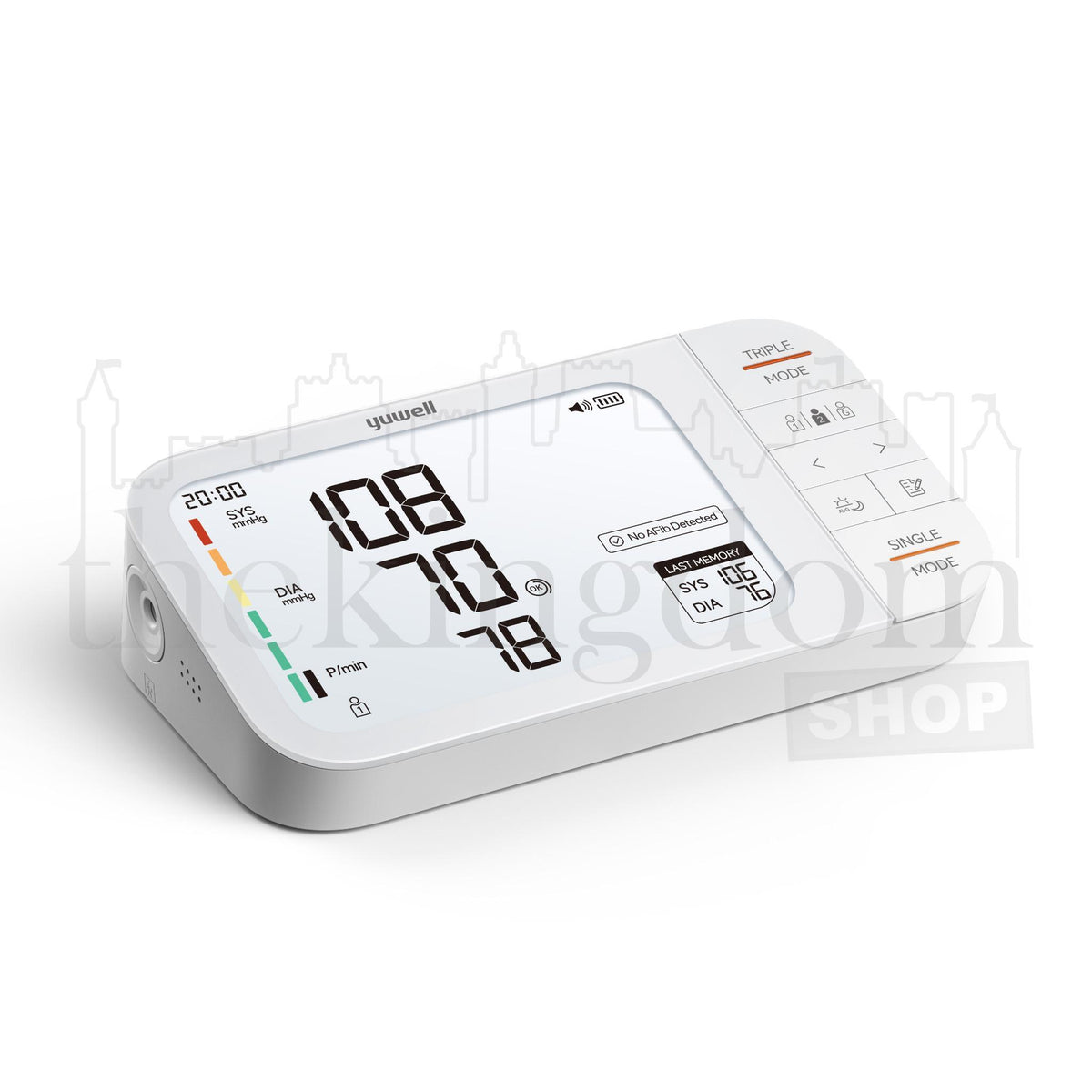

The Yuwell YE690C Blood Pressure Monitor is a digital blood pressure measuring device designed to help monitor blood pressure and pulse rate conveniently at home. Equipped with a large, backlit LCD screen, this device displays systolic (SYS) blood pressure, diastolic (DIA) blood pressure, and pulse rate (P/min) readings in clear, easy-to-read numbers.

The Yuwell YE690C digital sphygmomanometer features Bluetooth connectivity to support the transmission of measurement data to compatible applications. This feature allows users to easily save, view, and track their measurement history periodically.

One of the key advantages of the Yuwell YE690C is its Atrial Fibrillation (AFib) indication detection feature, which identifies certain heart rhythm irregularities. Additionally, the device is equipped with a movement detection indicator during measurement, a cuff wrapping indicator, blood pressure classification based on WHO standards, and a measurement storage feature.

With its practical design and digital operation, the Yuwell YE690C is suitable for family health monitoring at home or as a tool for routine blood pressure tracking.

KEY FEATURES

1. Digital Blood Pressure Measurement
   Automatically measures systolic blood pressure, diastolic blood pressure, and pulse rate using an upper arm cuff.

2. Bluetooth Connection
   Supports Bluetooth connectivity to help connect the device with compatible applications, making it easier to monitor measurement history.

3. AFib Indication Detection
   Features the ability to detect indications of atrial fibrillation during measurement. This feature is a screening aid and is not a substitute for a medical examination or diagnosis.

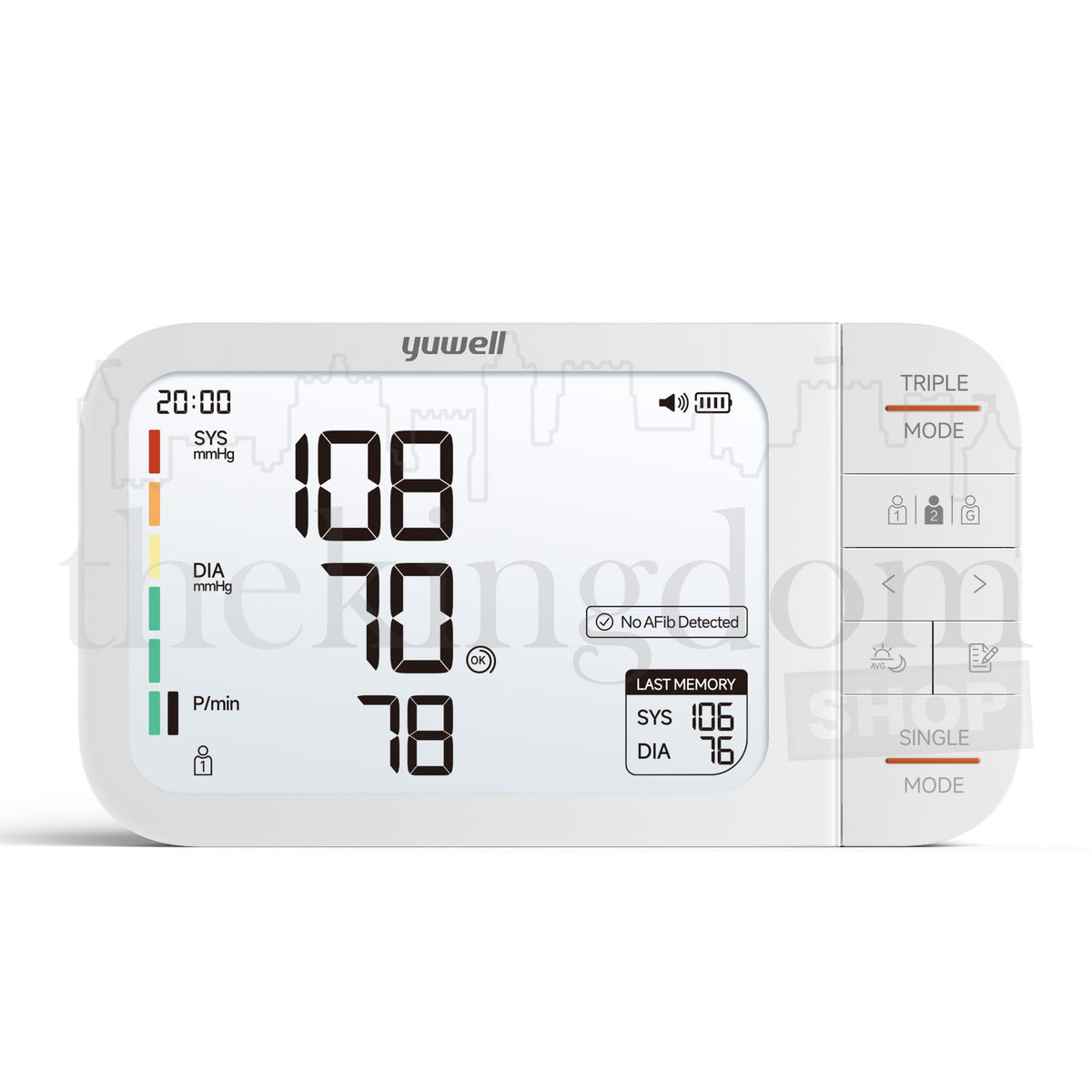

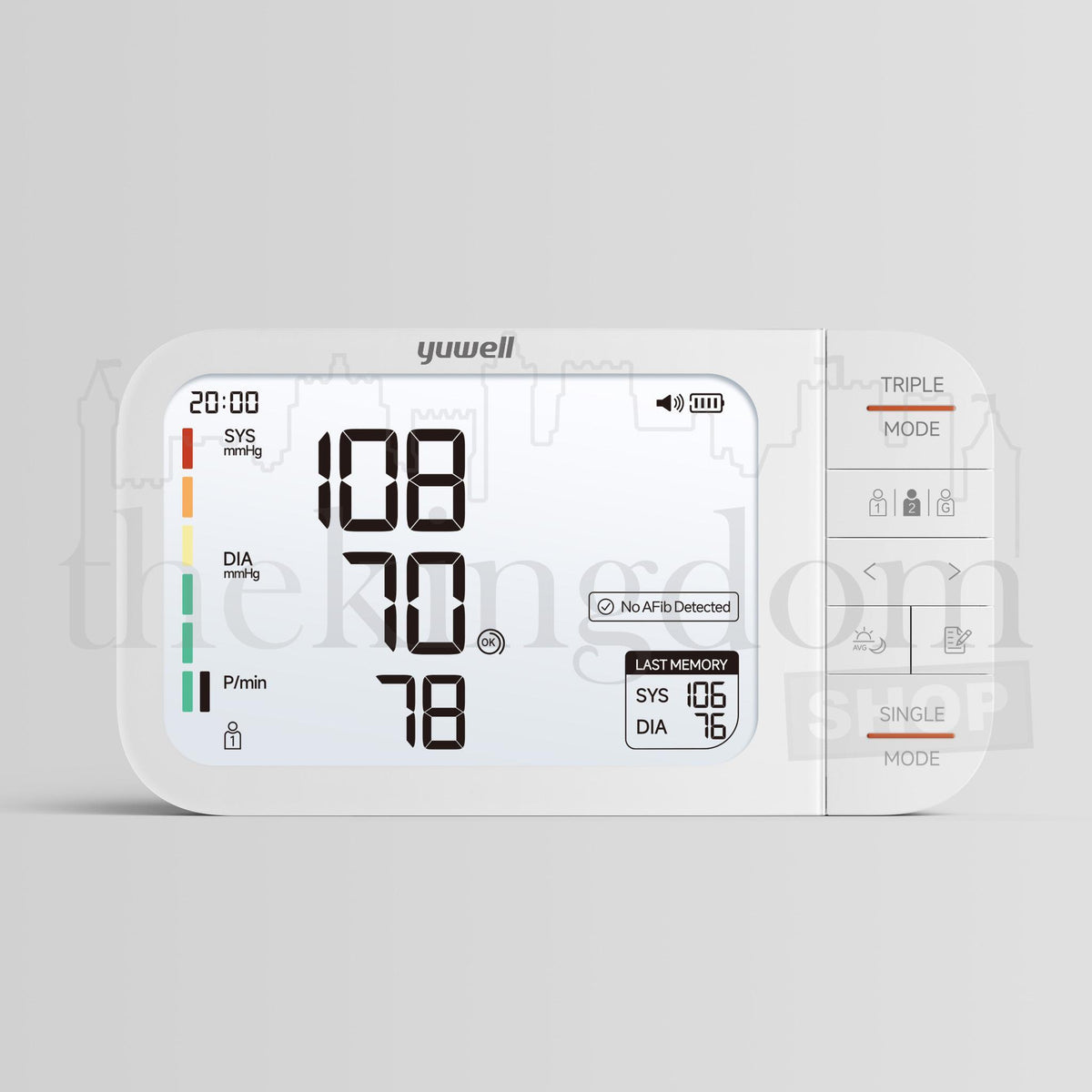

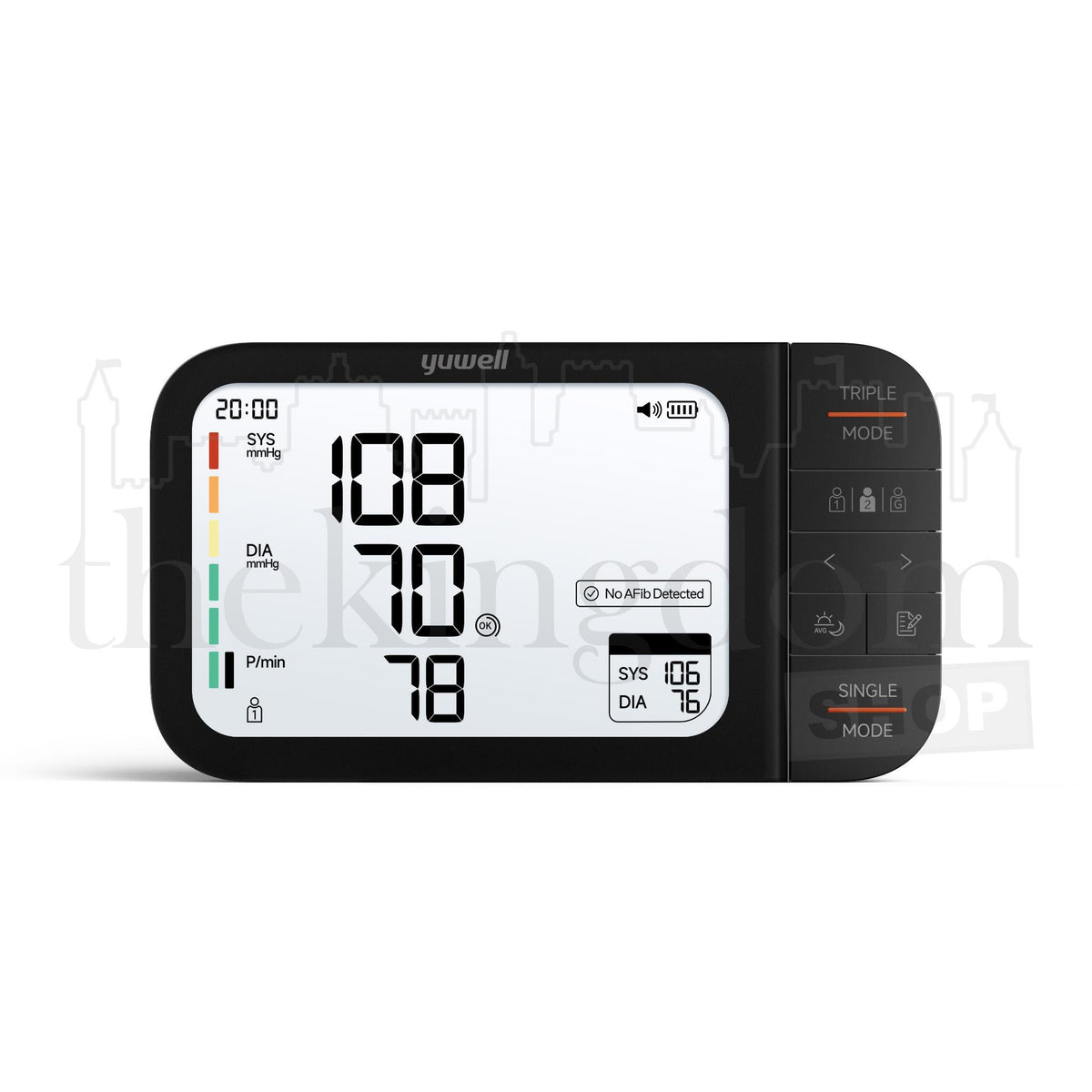

4. Large LCD Screen with Backlight
   The approximately 5.7-inch screen makes it easy for users to read measurement results.

5. Measurement Memory
   Stores data for up to 2 users with 199 measurement memories each, and provides a Guest Mode as per product specifications.

6. Movement Indicator
   Provides a warning if movement is detected that could potentially affect the measurement results.

7. Cuff Wrapping Detection
   Helps check that the cuff is applied correctly to ensure more accurate measurements.

8. WHO Blood Pressure Classification
   Equipped with a color indicator to help categorize blood pressure results based on the classification used by the device.

9. Average Measurement Feature
   Supports calculation of the average of the last three measurements as well as morning and evening seven-day average monitoring, depending on the mode selected.

10. Voice Guidance
    Equipped with a voice guidance feature to assist in the usage process.

11. Single Measurement and Triple Mode
    Provides options for both single measurement and Triple Mode according to usage needs.

12. Upper Arm Cuff
    Uses a standard-size cuff that fits the arm circumference range listed in the specifications.

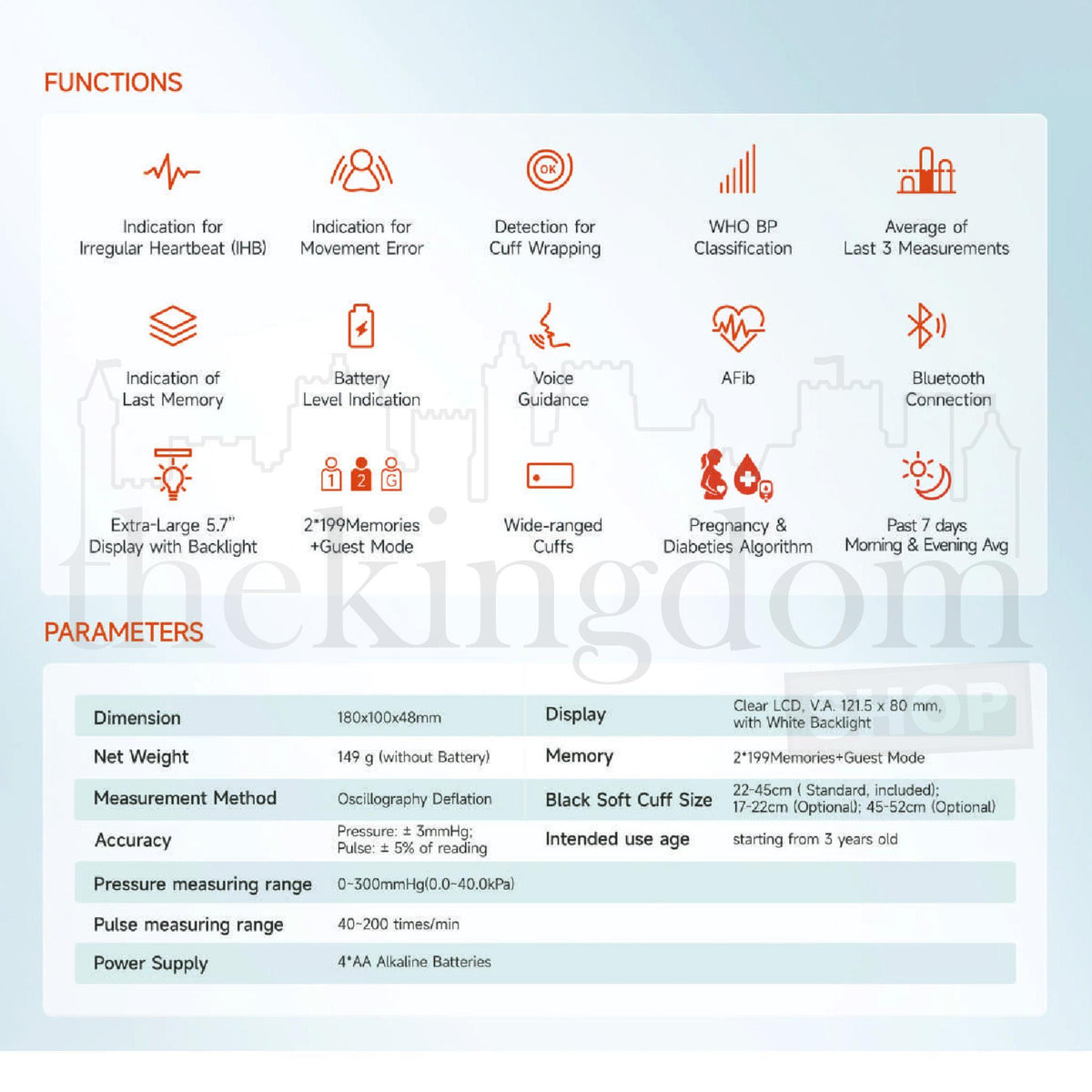

PRODUCT SPECIFICATIONS

• Brand: Yuwell

• Model: YE690C

• Product type: Upper arm digital sphygmomanometer

• Measurement method: Oscillometric

• Pressure measurement range: 0–300 mmHg

• Pulse measurement range: 40–200 beats/minute

• Pressure accuracy: ±3 mmHg

• Pulse accuracy: ±5% of the reading

• Screen: LCD with white backlight

• Screen size: approx. 5.7 inches

• Device dimensions: approx. 180 × 100 × 48 mm

• Device weight: approx. 149 grams without batteries

• Memory capacity: 2 users × 199 measurements, plus Guest Mode

• Standard cuff size: 22–45 cm

• Listed optional cuff sizes: 17–22 cm and 45–52 cm

• Power source: 4 AA alkaline batteries

• Connectivity: Bluetooth

• Additional features: AFib indication detection, movement indicator, cuff wrapping detection, WHO classification, voice guidance, and measurement memory.

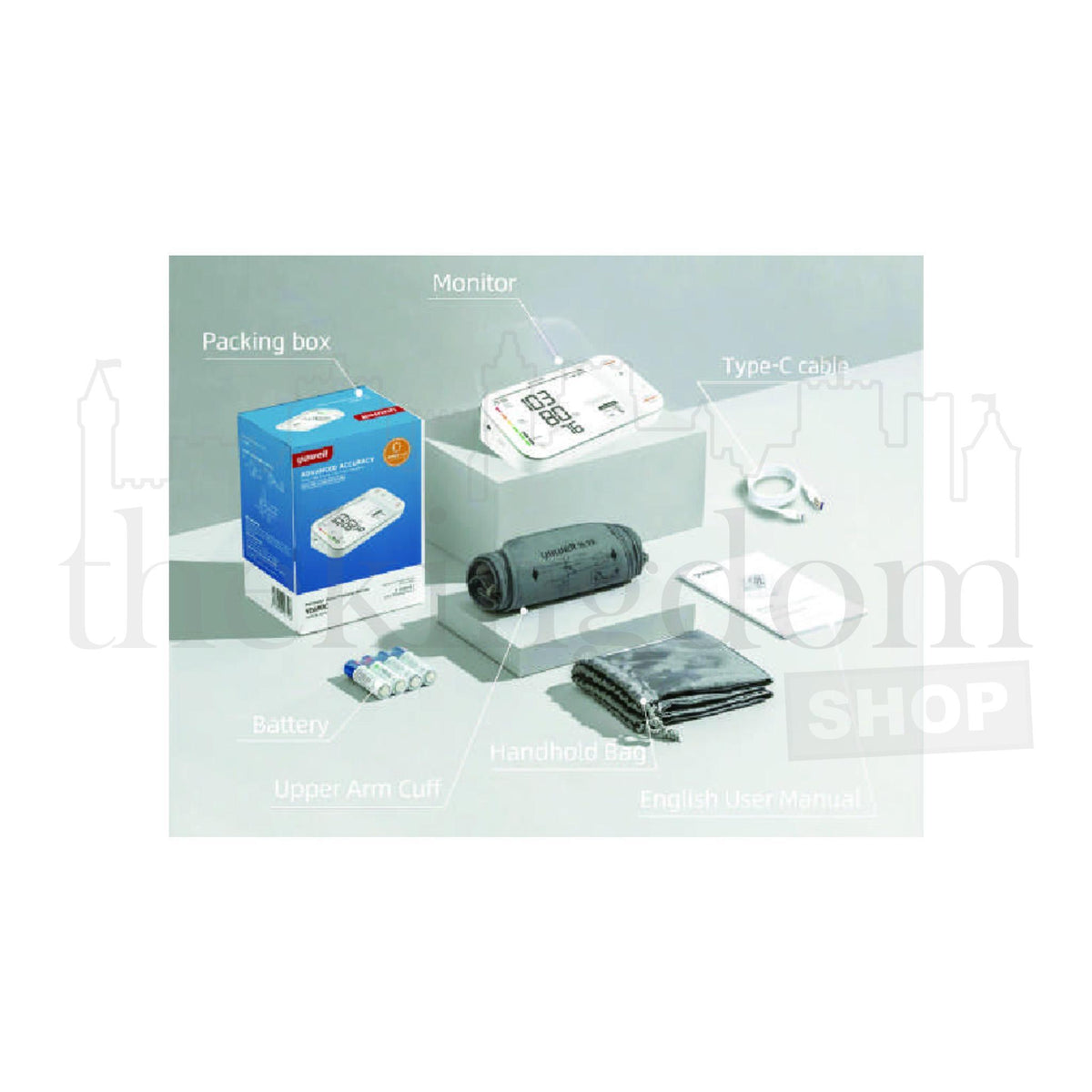

PACKAGE CONTENTS

Based on the product image, the package includes:

• 1 Yuwell YE690C blood pressure monitor unit

• 1 upper arm cuff

• 1 Type-C cable

• 1 storage bag

• 1 English user manual

• 1 product box

BENEFITS OF USE

• Helps monitor blood pressure routinely at home.

• Facilitates recording and tracking of measurement history.

• Supports family blood pressure monitoring through multi-user memory.

• Helps users identify indications of certain heart rhythm irregularities through the AFib feature.

• Makes reading measurement results easy through the large screen.

• Practical to use for supporting periodic health monitoring.
