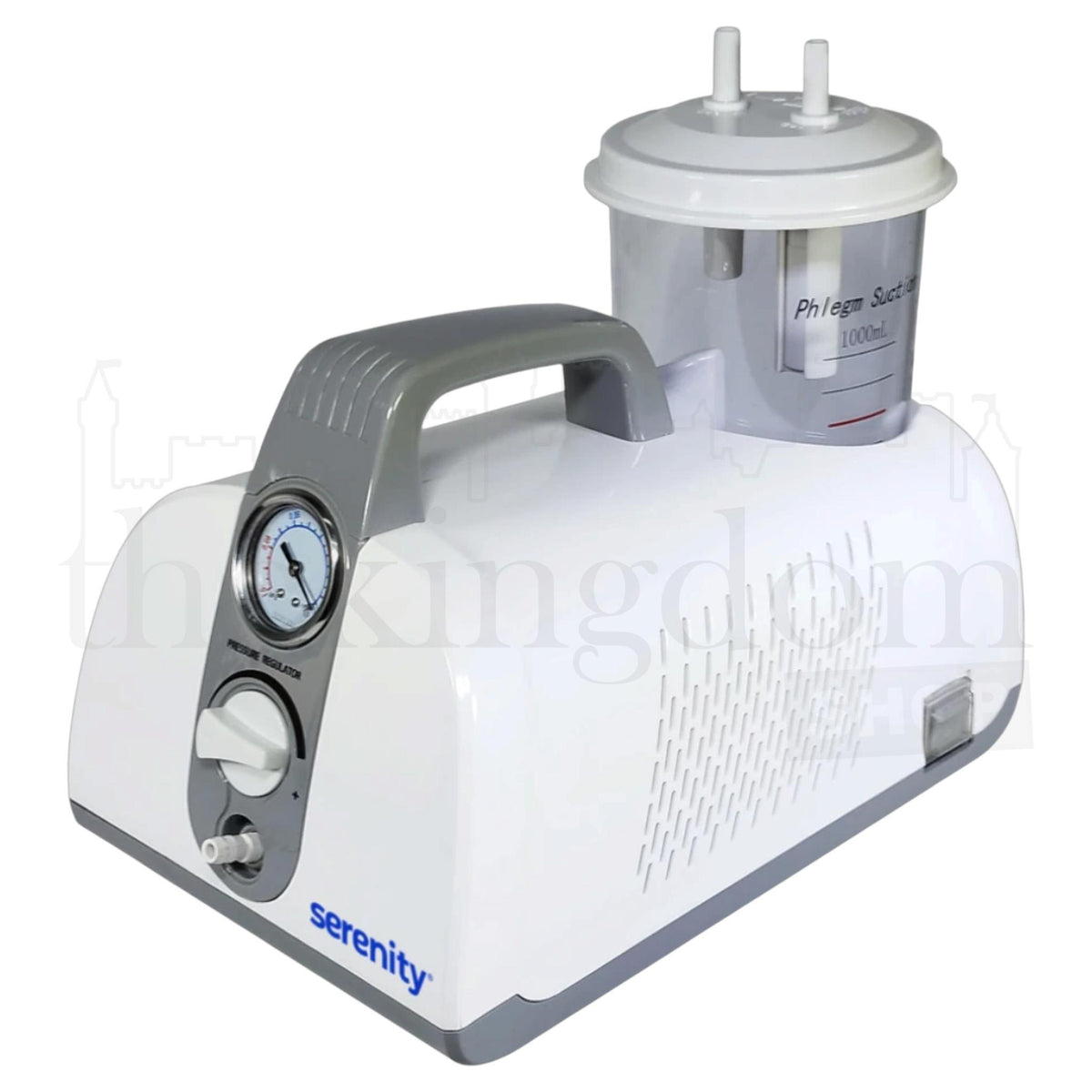

Serenity SU-510 Portable Suction Pump

Serenity SU-510 Portable Suction Pump

This Portable Suction Pump is a medical suction device for mucus/fluid with high mobility, useful for treating patients with mucus or phlegm obstruction in the respiratory tract. It is useful in the care of stroke patients, post-surgery, post-childbirth, and others.

Product Features:
1. Equipped with a portable handle, making this device easy to carry for ambulances, clinics, treatment rooms, as well as home patient care.
2. On the front, there is a gauge display that shows the pressure range accurately, allowing users to monitor suction power easily.
3. A pressure adjusting feature allows for the adjustment of negative pressure according to patient needs at any time with precise control.
4. With a flow capacity of more than 18 L/min, this device is capable of performing fluid suction quickly and efficiently. The pump system uses a diaphragm / oil-free piston, ensuring stable operation, no need for lubricants, and easier maintenance.
5. This device is equipped with a 1-liter jar to collect suctioned fluid. It includes a bacterial filter that can be sterilized using an autoclave, making it safe for repeated use. An 8 mm silicone hose with a length of 2 meters provides flexibility during procedures.
6. Pressure measurement is performed with a 5 cm diameter vacuum gauge, with a range of -0.1 to 0 Mpa. This suction pump operates on 220V AC, 50/60 Hz, 90 VA power with a maximum negative pressure reaching >0.075 Mpa, ensuring optimal suction power for various medical needs.
7. With dimensions of 34 x 24 x 28 cm and weighing only 3 kg, it is equipped with an overfill protection feature to prevent the jar from overflowing and to keep the device safe.

Specifications:
- Maximum vacuum / LPM: >18L/min, ±10%
- Pump type: Diaphragm pump/oil-free piston
- Jar: 1 x 1 liter
- Filter: Bacterial filter (autoclavable/reusable)
- Hose: 8 mm x 2 meters (Silicon), ±0.2%
- Vacuum gauge: 5 cm, -0.1 – 0 Mpa, ±10%
- Power source: 220 V AC, 50 / 60 Hz, 90 VA, ±10%
- Max negative pressure: >0.075 Mpa ±10%
- Dimensions: 34 x 24 x 28 cm, ± 1 cm Weight: 3 kg
- Overfill protection: Mechanical and Electronic Sensor

KEMENKES RI AKD 21603520112
